Splitter.SplitTextByRanges Function in Power Query

The Splitter.SplitTextByRanges function in Power Query, returns a function that splits text into a list of text according to the specified ranges (specified offsets and lengths).

Syntax

Splitter.SplitTextByRanges(
    ranges as list,
    optional startAtEnd as nullable logical
) as function

The function has the following parameters:

ranges: A list of lists, where each inner list contains two numbers: {startPosition, length}.
- startPosition: The zero-based index where the substring starts.
- length: The number of characters to extract starting from startPosition.
startAtEnd: It is an optional parameter. A logical value (true or false). If true, the splitting starts from the end of the text. Default is false (starts from the beginning).

Example: Splitting an 8-digit string column into Branch Code, Subject Code, and Version.

Power Query M

// Start of the 'let' expression to define transformation steps
let
  // Step 1: Create a table named 'Source' using Table.FromRecords
  // Each record contains a single field "Data" with an 8-digit string
  Source = Table.FromRecords(
    {
      [Data = "01569500"],
      [Data = "02547801"],
      [Data = "03380707"],
      [Data = "14745847"],
      [Data = "75727804"],
      [Data = "56537809"],
      [Data = "44568305"],
      [Data = "08778001"]
    }
  ),

  // Step 2: Split the "Data" column into three columns using SplitTextByRanges
  // Each range is defined as a pair {start, length}
  //   - {0,2} extracts the first 2 characters (Branch Code)
  //   - {2,4} extracts the next 4 characters (Subject Code)
  //   - {6,2} extracts the final 2 characters (Version)
  return = Table.SplitColumn(
    Source,
    "Data",
    Splitter.SplitTextByRanges({{0, 2}, {2, 4}, {6, 2}}),
    {"Branch Code", "Subject Code", "Version"}
  )

// Final output of the query
in
  return

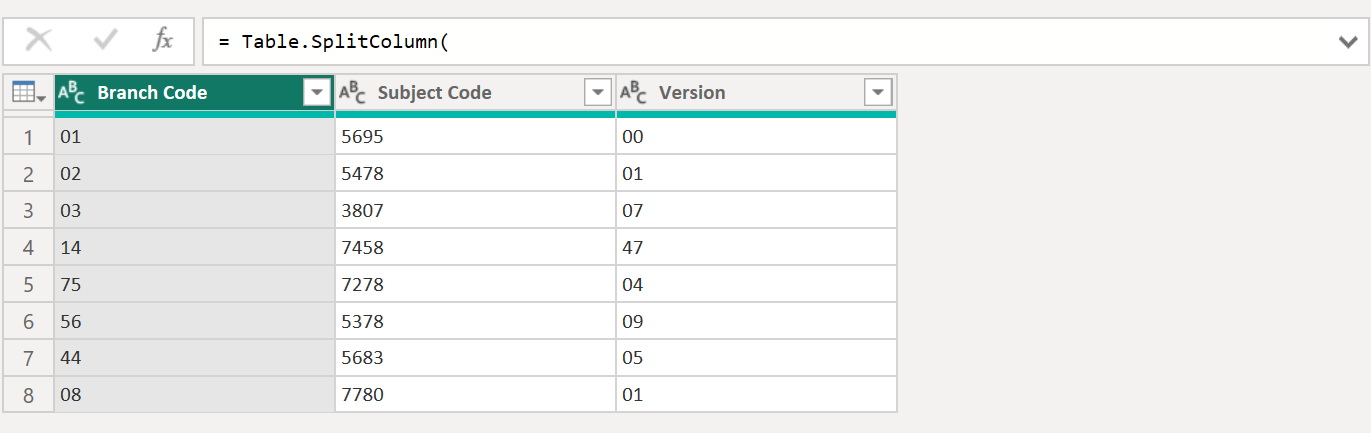

The output of the above code is shown in the image below:

Splitter.SplitTextByRanges function in Power Query

Note: The Splitter.SplitTextByRanges, Splitter.SplitTextByLengths, and Splitter.SplitTextByPositions functions all rely on accurate inputs (ranges, lengths, or positions) to produce the correct output. If these are incorrect, the resulting substrings will be wrong.
